Demo - Oscilloscope

This demo has nothing to do with Annex-Wifi Basic, except to show it can host such an impressive example, which is impressive in its own right.
Upload the attached zip using the Annex Toolkit Zip facility, which will automatically recreate the correct folder structure.

Run the demo by selecting  /html/scope.html  from the File Manger then click View
Or run it directly from the browser address bar by prefixing its path/filename with the device IP address, ie:

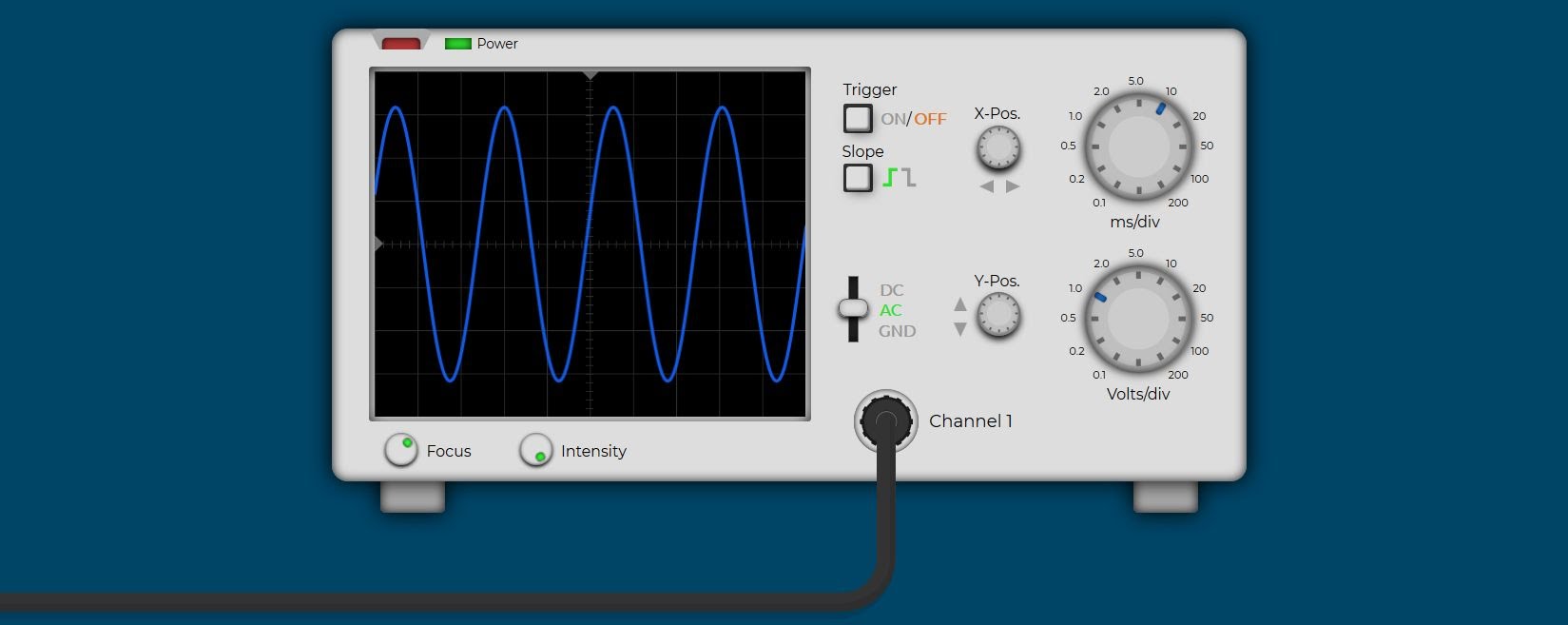

Click the top left red power button to 'power' the scope on, then click on the empty BNC scope probe socket to see a scope probe attach itself.
All the controls actually do something.


The original codepen article can be found here:  https://codepen.io/nitnelav/pen/KzPwrK


ċ
oscilloscope.zip
(9k)
Margaret Baker,
Dec 30, 2017, 1:38 PM
