Project - Panel Switch


The red code from the previous project can be used as a standard switch 'functionality pack'.
The 'switch functionality pack' requires adding these 5 lines to the top of your Basic script:

pinA = 12                              'gpio pin for switch A
stateA = 1                             'used to specify the switch state according to the checkbox state
pin.mode pinA, output        'configures the pin for output
pin(pinA) = stateA                'sets pin to default state
onHtmlChange change        'jump when switch is clicked

Remove the original checkbox line and substitute our own Basic version:

'a$ = a$ + |  <input type="checkbox">|       'disable original web checkbox
 a$ = a$ + checkbox$(stateA)                   'add in a replacement Basic checkbox$

Add the following 6 lines to the bottom of the Basic script:

wait
change:
print stateA                                   'for debugging purposes
pin(pinA) = stateA                        'sets pin according to checkbox state
refresh
return

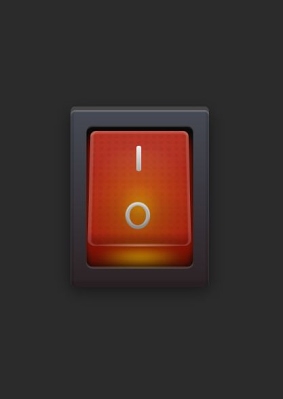

It was added 'as is' to make this illuminated panel switch control a functional gpio pin.

Basic:
pinA = 12                               'gpio pin for switch A
stateA = 1                              'used to specify the switch state according to the checkbox state
pin.mode pinA, output         'configures the pin for output
pin(pinA) = stateA                 'sets pin to default state
onHtmlChange change         'jump when switch is clicked
cls
a$ = ""
a$ = a$ + |<!DOCTYPE html>|
a$ = a$ + |<html lang="en" >|
a$ = a$ + |<head>|
a$ = a$ + |<meta charset="UTF-8">|
a$ = a$ + |<title>Switch Button #3</title>|
a$ = a$ + |<link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/normalize/5.0.0/normalize.min.css">|
a$ = a$ + |<link rel="stylesheet" href="/html/litsw1.css">|
a$ = a$ + |</head>|
a$ = a$ + |<body>|
a$ = a$ + |<label class="button">|
'a$ = a$ + |  <input type="checkbox">|       'disable original web checkbox
a$ = a$ + checkbox$(stateA)                   'add in a replacement Basic checkbox$

a$ = a$ + |    <span class="hole">|
a$ = a$ + |      <span class="switch">|
a$ = a$ + |      <span class="one"></span>|
a$ = a$ + |      <span class="zero"></span>|
a$ = a$ + |    </span>|
a$ = a$ + |  </span>|
a$ = a$ + |</label>|
'a$ = a$ + |<script  src="/html/litsw1.js"></script>|
a$ = a$ + |</body>|
a$ = a$ + |</html>|
html a$
a$ = ""

wait
change:
print stateA                                   'for debugging purposes
pin(pinA) = stateA                        'set pin according to checkbox state
refresh
return


Save as:  /program/panelsw.bas



Copy and paste the following CSS code and save to file:  /html/litsw1.css

CSS:
.button {
  position: absolute;
  top: ~"calc(50% - 115px)";
  left: ~"calc(50% - 90px)";
  display: block;
  width: 180px;
  height: 230px;
  background-image: linear-gradient(to bottom, #464A54 0%, #2C2225 100%);
  border-radius: 6px;
  cursor: pointer;
  box-shadow:
    0 -5px 0px #464649,
    0 4px 20px fade(black, 50%),
    0 2px 1px #66696E inset,
    4px 0 0 fade(black, 10%) inset,
    -4px 0 0 fade(black, 10%) inset,
    0 -8px 2px fade(black, 10%) inset;

  .hole {
    position: absolute;
    top: 20px;
    left: 20px;
    display: block;
    width: 140px;
    height: 186px;
    overflow: hidden;
    background-color: #090909;
    border-radius: 8px;
    box-shadow:
      0 -2px 1px fade(white, 25%) inset,
      0 2px 1px fade(white, 20%) inset;
  }

  .switch {
    position: absolute;
    top: 6px;
    left: 4px;
    display: block;
    width: 132px;
    height: 174px;
    background-image:
      radial-gradient(ellipse at center, fade(white, 7%) 0%, transparent 80%),
      radial-gradient(ellipse at center, fade(black, 15%) 0%, transparent 80%),
      radial-gradient(ellipse at center, fade(white, 2%) 0%,  fade(white, 2%) 30%, transparent 50%),
      linear-gradient(to bottom, #882626 0%, #290606 100%);
    background-size: 100% 80px, 100% 80px, 10px 10px, 100%;
    background-position: top left, bottom left, bottom left, center;
    background-repeat: no-repeat, no-repeat, repeat, no-repeat;
    border-radius: 8px;
    box-shadow:
      2px 0 1px fade(white, 10%) inset,
      -2px 0 1px fade(white, 10%) inset,
      0 -2px 2px fade(white, 5%) inset,
      0 4px 2px fade(black, 5%) inset,
      0 -30px 8px fade(#C62D2D, 50%),
      0 -25px 8px fade(#C62D2D, 30%),
      0 -20px 8px fade(#C62D2D, 40%),
      0 -15px 8px fade(#C62D2D, 50%),
      0 -10px 8px fade(#C62D2D, 60%),
      0 -5px 8px fade(#C62D2D, 90%);
    transform-style: preserve3d;
    transform-origin: center center;
    transform:
      perspective(1500px)
      rotateX(-30deg)
      translateY(16px);
    transition: transform 200ms ease;

    &:before {
      content: "";
      position: absolute;
      top: -2px;
      left: 5px;
      width: 122px;
      height: 5px;
      background-image: radial-gradient(ellipse at center, fade(white, 40%) 0%, transparent 80%);
    }

    .one {
      position: absolute;
      top: 24px;
      left: calc(50% - 3px);
      display: block;
      width: 6px;
      height: 40px;
      background-image: linear-gradient(to bottom, #ccc 0%, #999 100%);
      box-shadow: 0 2px 1px white inset;
      border-radius: 4px;
    }

    .zero {
      position: absolute;
      bottom: 24px;
      left: calc(50% - 14px);
      display: block;
      width: 32px;
      height: 40px;
      box-shadow:
        0 4px 2px fade(white, 50%) inset,
        0 -4px 2px fade(black, 20%) inset,
        0 0 0 6px #666 inset;
      border-radius: 50%;
    }
  }

  input {
    display: none;

    &:checked ~ .hole .switch {
      background-image:
      radial-gradient(ellipse at center, fade(white, 7%) 0%, transparent 80%),
      radial-gradient(ellipse at center, fade(black, 15%) 0%, transparent 80%),
      radial-gradient(ellipse at center, fade(#FEF400, 50%) 0%, fade(#FEF400, 20%) 30%, fade(#FEF400, 10%) 50%, transparent 80%),
      radial-gradient(ellipse at center, fade(black, 5%) 0%,  fade(black, 5%) 30%, transparent 50%),
      linear-gradient(to bottom, #B43222 0%, #A51810 100%);
      background-size: 100% 80px, 100% 80px, 100% 180px, 10px 10px, 100%;
      background-position: top left, bottom left, 0 30px, bottom left, center;
      background-repeat: no-repeat, no-repeat, no-repeat, repeat, no-repeat;
      border-radius: 8px;
      box-shadow:
        4px 0 1px fade(white, 15%) inset,
        -4px 0 1px fade(white, 15%) inset,
        0 4px 1px fade(white, 15%) inset,
        0 -12px 8px fade(black, 25%) inset,
        0 30px 8px fade(#801105, 50%),
        0 25px 8px fade(#801105, 30%),
        0 20px 8px fade(#801105, 40%),
        0 15px 8px fade(#801105, 50%),
        0 10px 8px fade(#801105, 60%),
        0 5px 8px fade(#801105, 90%);
      transform:
      perspective(1500px)
      rotateX(30deg)
      translateY(-16px);

      &:before {
        top: auto;
        bottom: -2px;
      }

      &:after {
        content: "";
        position: absolute;
        bottom: -24px;
        left: calc(50% - 36px);
        width: 96px;
        height: 16px;
        border-radius: 50%;
        background-image: radial-gradient(ellipse at center, #FEF400 0%, fade(#FEF400, 30%) 60%, transparent 100%);
        filter: blur(8px);

      }

      .one {
        background-image: linear-gradient(to bottom, #eee 0%, #aaa 100%);
      }

      .zero {
        box-shadow:
          0 4px 2px fade(white, 50%) inset,
          0 -4px 2px fade(black, 20%) inset,
          0 0 0 6px #aaa inset;
      }
    }
  }
}

body {
  background-color: #2B2B2B;
}

Save to file:  /html/litsw1.css

The original codepen article can be found here:  https://codepen.io/silverballs/pen/otIeq
