 It too was put on the shelf for more than a year, but is being published now because it appears to be mostly working ok with the latest Annex (currently 1.39). I think there was still something I wasn't happy with, but I can't remember what it was - so be aware that it may not be 100%, but better something than nothing. This Smart Switch demo video should give some idea of what it can do. The intention was to create a Smart Switch for controlling mains lighting etc using cheap Sonoff devices which already incorporate the required MAINS hardware - so was just a matter of using TX or RX gpio, or soldering a pair of thin flexible wires
across the onboard gpio0 button, which would be routed out away from the MAINS for
connecting to alternative switches or sensors. If those original Sonoffs are unavailable, almost any other Annex compatable switched Mains device could be used instead. The Smart Switch script provides for an input to trigger a local

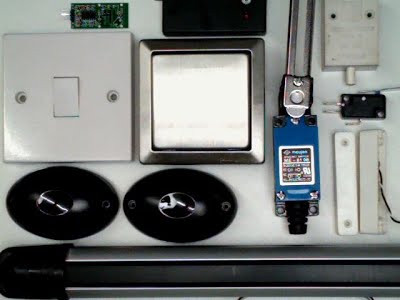

relay and/or send instructions to control remote devices if wished. The input trigger can be bi-state On or Off, or momentary push-button, allowing almost any types of switches or sensors to be used (a few switches, beam-breaks and radar sensors shown on top right).
Amongst many other uses, it offered an easy low cost method for converting existing lighting into a 'smart' system by disconnecting the existing wall switch wires in the ceiling space and adding a Sonoff in their place to do the actual mains switching, then re-using the original disconnected switch and wiring to control the Sonoff gpio0 button (or other gpio). This allows the converted lights to still be operated locally by the original switch, but also offers opportunity for intelligent sensor-controlled lights and appliances.
(the skills needed for doing it are mainly common-sense and reasonable competence, but the legalities of doing it would depend on the country and what qualifications were required)  Although the project details are based on the low-cost Sonoff Mains Relay Module, the principles are easily adapted to other devices.

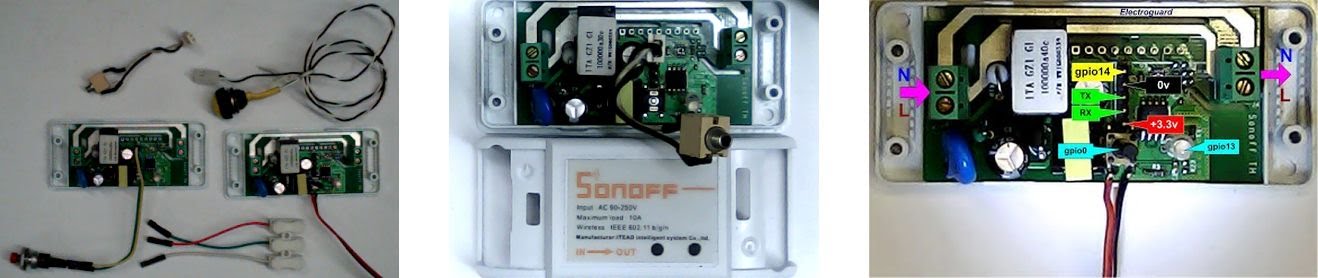

Sonoff devices typically have vacant flashing holes, so will probably need pins soldered in for connecting a UART to reflash the device with Annex.
After flashing, the TX (gpio01) and/or RX
(gpio03) can be used as an input or output if wished (see this TX RX Hack for more info). Some Sonoffs also have gpio14
available, as well as the usual gpio0 button - so there are a few alternative gpio pins available to use for the switch input pin.
Doesn't have to be a Sonoff of course, the hardware can be any
Annex device that suits your needs, from a battery-powered ESP-01 to a
MAINS relay module. Using the TX & RX pins as well as the
gpio flashing button offers any device (even an ESP-01) to provide at
least 3 gpio's to choose from.
Eg: replacing On/Off flip switches with momentary push-buttons allows devices to be remotely toggled On and Off from multiple locations without special wiring.
EasyNet was included to allow devices to be remotely controlled using UDP, either individually, or as a
group where multiple devices can all be controlled together.
Devices could be controlled manually using the Toolkit UDP Console, or UDP instructions embedded into devices to allow them to automatically control others.
Towards the top of the script you can find... instructionslist$ = "Reply BlinkIP Blink Save Load " 'List of system subdir branches available as remote triggers instructionslist$ = instructionslist$ + "Relay1On Relay1Off Toggle1 Cycle1On Cycle1Off" 'List of user subdir branches available as remote triggers All those listed words have a corresponding gosub branch named after them, which effectively turns them into local 'instructions' which can be actioned remotely.
So in a nutshell, if a local device recognises its own Node
name, or Group name, or IP address, or "ALL", in any incoming UDP
message, and if that message contains an 'instruction' which it can
recognise from its instructionlist$ it will gosub to the
corresponding branch name to action the code for that instruction. Grasp that concept and you'll realise how easy it is to add your own network 'instructions' simply by adding a word to instructionlist$ and creating a subroutine with the same name to branch to and 'action' it (and if you wish to pass parameters with your instructions, take a look at the blink: subroutine). Consider a few possible UDP messages... "ALL Relay1OFF" could turn all devices with relays to Off. "STAIRS Cycle1ON" could turn On all devices with "STAIRS" included in their group name for a predetermined duration, then cycle them back Off again. "ROUTER Cycle1OFF" could 'bounce' a 'slow' wifi router by turning it Off for several seconds then back On again. "192.168.0.126 Toggle1" could change the state of whatever that device was controlling. Basically, any Smart Switch sensors could control any remote devices, and a Smart Switch could itself be controlled by other remote devices. An ensuing Smart Socket project will let Sonoff S20 or successors or any equivalent plug-in MAINS relays, also join the party. And a little battery-powered Wemos D1 Mini with BIG button could make a handy match-box sized Smart Switch remote controller. (the TTGO equivalent even has onboard LIPO connector plus charger and ext aerial socket) Note: EasyNet interactive remote control is entirely optional and transparent... so simply ignore it if not wanted
(it will still always be available if ever needed)  Hidden Extras So the Smart Switch has already earned its name... but it also has many hidden smart extras. The additional functionality is disabled by default for a couple of reasons... Firstly, some was only partially implemented when it was shelved - but rather than
rip it all out, it's being left for others to
continue from if they wish (eg: Load and Save settings to INI, etc). More importantly, it would
be both pointless and potentially dangerous to have more than one functionality
enabled at any one time which might cause a conflict situation where eg: scheduled alarms
could interfere with thermostat control or vice versa. Also, the 1 sec 'ticker' should manage anything, but could struggle with everything. Controlling
MAINS equipment can have serious potential consequences - so
although most of the additional hidden functionality can be enabled at
the top of the script, you do so entirely at your own risk... and make sure to read Note 6: 'Panic Button' below.
(more info is available from the Skin Clock project) ... (the temperature readout will show -127 if no Dallas sensor is available)

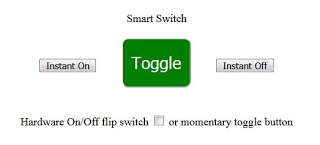

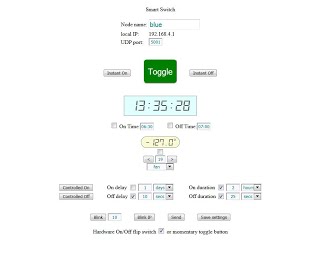

Buttonmode and switchmode can be configured towards the top of the script to allow the hardware button/switch/sensor contacts on buttonpin and/or switchpin to either operate in On/Off flip switch mode (eg: to show when a door is open or closed) or act as a momentary push-button. The hardware button can only distinguish between short (toggle relay) and long (blink IP address) button presses if Buttonmode=0 (momentary) Selecting the checkbox just underneath the temperature display
turns the thermometer into a thermostat - the setpoint can be moved up or
down, and 'fan' or 'heater' mode selected from the listbox... fan mode turns
relay On when temp is above the setpoint, heater mode turns relay On when
temp is below the setpoint. The 'Send' button is just a test mechanism for sending the predetermined contents of 'sendmsg$' via UDP to check if it does as expected... used for embedded
control of remote EasyNet devices. Probably easier to understand if considered the other way round, ie: a remote device sending an embedded instruction to control this local device... if this local device recognises its own Node name, or Group name, or IP
address, or "ALL", in any incoming UDP message, and it matches the incoming 'instruction' to a word it recognises in its
instructionlist$, then it should gosub to the corresponding branch name to
execute that code. So the send button is for manually sending and testing instructions from a remote device prior to embedding those instructions into the appropriate sending code. By default the script is configured for Sonoff pins, so change pinouts to suit your own requirements. Ledpin = 13, ledoff = 1 (normally high, going active low) Relaypin = 12, relayoff = 0 (normally low, going active high) Buttonpin = 0, normally pulled high, going low when pressed, buttonmode = 1 changes the behavour to use On/Off type switches instead of a momentary pushbutton Switchpin = 1, switchoff = 1 (normally high, going active low) uses RX as input contacts, use switchoff = 0 for active high triggers, switchmode changes the behaviour Dallaspin = 3 uses gpio3 for an optional Dallas 1-wire temperature sender if that gpio is not being used by switchpin (or a DHT could be used instead of the Dallas). Note 1: Switchmode changes the behaviour of whatever is connected to switchpin, whereas buttonmode changes the behaviour of the gpio0 flashing button. Note 2: Showmodes = 1 displays onscreen buttonpin and switchpin checkboxes for changing their modes in real time to check resulting behaviours. Note 3: If either gpio1 TX or gpio0 flashing button are low at bootup it will prevent normal startup, so bear that in mind if not using momentary contacts.Note 4: If the weak esp pullup is unreliable because of sensor wire lengths etc, use a stronger (1K to 10K) hardware pullup resistor. Note 5: If LED is available it will show any pending CycleOn or CycleOff changes. Note 6: Using Toggle acts like a manual 'Panic Button' which disables Thermostat control and any pending Scheduled alarms. Note: Developed on 1.39 beta 1, and does not work on version 1.39 beta 2 because of a firmware bug, but should hopefully be fixed in the next release.
Basic:
title$ = "EasyNet Smart Switch/Socket - by Electroguard - developed on Annex 1.39 beta 1"
nodename$ = "" 'Assign a unique node name of your choice (if you forget, it will be called "Node" + its node IP) groupname$ = "Sonoff\Smart\Switch\Socket\Relay" 'concatenated group names are searched for a partial match localIP$ = WORD$(IP$,1) netIP$ = WORD$(localIP$,1,".") + "." + WORD$(localIP$,2,".") + "." + WORD$(localIP$,3,".") + "." nodeIP$ = WORD$(localIP$,4,".") udpport = 5001 'change to suit your own preference, but don't forget to do the same for all nodes if nodename$ = "" then nodename$ = "Node" + nodeIP$ showsettings = 0 showtitle = 1 showID = 0 '=1 to show local identity info showbuttons = 1 '=1 to show onscreen system buttons showclock = 0 '=1 to show clock and schedule options showscheduled = 0 '=1 to show scheduled alarm On and Off times showcycled = 0 '=1 to show cycleOn and cycleOff options showswmodes = 0 '=1 to show harware button and switch mode checkboxes showtools = 0 '=1 to show onscreen system buttons showtherm = 0 '=1 to show temperature display showstat = 0 '=1 to enable thermostat options 'filename$ = word$(BAS.FILENAME$,1,".") + ".ini" 'Un-comment this line to save settings to 'this scriptname'.ini filename$ = "/program/smartswitch.ini" 'Uncomment this line to save to a specfied file fontpath$ = "/font/" 'path to optional font file fontfile$ = "dig7monoitalic.ttf" 'filename.ext of optional font file instructionslist$ = "Reply Report BlinkIP Blink Save Load " 'List of Subdir branches available as remote triggers instructionslist$ = instructionslist$ + "Relay1On Relay1Off Toggle1 Cycle1On Cycle1Off" 'List of Subdir branches available as remote triggers setpoint = 22 'thermostat setpoint statlist$ = "fan,heater" statmode$ = "fan" 'fan switches relay on if temp above setpoint, heater switches relay on if temp below setpoint. dallaspin = 1 'Dallas 1-wire temperature sensor pin temp$ = str$(val(tempr$(dallaspin,1)),"%2.1f") newtemp$ = "" enablestat = 0 '=1 to enable thermostat switching enablescheduledOn = 0 '=1 to enable scheduled On time enablescheduledOff = 0 '=1 to enable scheduled Off time ontime$ = "8:01" offtime$ = "8:02" unitslist$ = "secs, mins, hours, days" secs = 1: mins = secs * 60: hours = mins * 60: days = hours * 24 enabledelayon = 0 '=1 enable cycleOn delay ondelay = 7 'cycleOn delay ondelunits$ = "days" ondelaycountdown = -1 enabletimedon = 1 '=1 enable cycleOn duration onduration = 1 'cycleOn duration ondurunits$ = "mins" ondurationcountdown = -1 enabledelayoff = 1 '=1 enable cycleOff delay offdelay = 10 'cycleOff duration offdelunits$ = "secs" offdelaycountdown = -1 enabletimedoff = 1 '=1 enable cycleOff duration offduration = 30 'cycleOff duration offdurationcountdown = -1 offdurunits$ = "secs" instruction$ = "" 'variable to hold incoming instruction RXmsg$ = "" 'variable to hold incoming message data$ = "" 'variable to hold any incoming data which follows the instruction retryq$ = "" 'variable to hold all unexpired messages still waiting to be acknowledged qdelimiter$ = "|" 'separates messages in the retryq time2live = 30 'sent-message unacknowledged lifetime in seconds led1pin = 13: led1off = 1: pin.mode led1pin, output: pin(led1pin) = led1off relay1pin = 12: relay1noff = 0: pin.mode relay1pin, output: pin(relay1pin) = relay1noff 'using active high qpio12 for relay1 switchpin = 3: switchoff = 1: pin.mode switchpin, input, pullup 'switch normally high active low switchmode = 1 '1=bi-state lever switch, 0=momentary press to toggle button interrupt switchpin, switched buttonpin = 0: pin.mode buttonpin, input, pullup 'using active low gpio0 button buttonmode = 0 '1=bi-state lever switch, 0=momentary press to toggle button interrupt buttonpin, pressed start=0: stop=0 'used by button-pressed subroutine to differentiate between short and long presses debounce = 100 longpress=3000 'longpress set high at 3 secs to minimise accidental triggering of blinkIP ledstat$ = "green" blinks = 10 'blink default number of blinks, can be over-ridden by sending "nodename blink number_of_blinks" 'gosub load 'ini file mechanism is not fully implemented gosub paint onhtmlchange changed onhtmlreload paint timer0 1000, ticker timer1 1000, Retry 'periodic timer to keep resending unACKed msgs until they expire udp.begin(udpport) onudp udpRX wlog "Started: " + time$ + " on " + date$ wait paint: cls autorefresh 1000 a$ = a$ + |<br><div id='message' data-var='clicked' onclickx='cmdButton(this)' style='display: table; margin-right:auto;margin-left:auto;text-align:center;'>| if showtitle = 1 then a$ = a$ + title$ + "<br><br>" if showID = 1 then a$ = a$ + |<table align='center'><tr><td>| a$ = a$ + |Node name:</td><td>| + textbox$(nodename$,"tbname") + |</td></tr><tr><td>| a$ = a$ + cssid$("tbname", "color:Darkcyan;font-size:1.2em;width:150px;") a$ = a$ + |local IP:</td><td>| + localIP$ + |</td></tr><tr><td>| a$ = a$ + |UDP port:</td><td>| + textbox$(udpport,"tb40") + |</td></tr></td></tr></table><br><br>| endif if showbuttons = 1 then a$ = a$ + button$("Instant On",relay1on) + string$(9," ") + button$("Toggle", toggle1, "butled") + string$(9," ") + button$("Instant Off",relay1off) + |<br><br>| a$ = a$ + cssid$("butled", "height:3em; font-size:1.5em; border-radius:.4em; padding:.5em; color:white; background:" + ledstat$ + ";") endif if showclock = 1 then a$ = a$ + |<div style='display: table; margin-right:auto;margin-left:auto;text-align:center;borderx:1px solid gray;'>| a$ = a$ + |<style> @font-face { font-family: myfont; src: url('| + fontpath$ + fontfile$ + |');} </style><br>| a$ = a$ + |<div id='clock' style='font-family:myfont;background:lightcyan;color:dimgray;font-size:2.9em;border:1px solid gray;text-align:center;| a$ = a$ + |display: table; margin-right:auto;margin-left:auto;padding-left:.4em;padding-right:.4em;'>| + time$ + |</div><br>| endif if showscheduled = 1 then a$ = a$ + |<div style='display: table; margin-right:auto;margin-left:auto;text-align:center;borderx:1px solid gray;'>| a$ = a$ + checkbox$(enablescheduledon) + " " + |On Time:| + textbox$(ontime$,"tb40") + string$(9," ") a$ = a$ + checkbox$(enablescheduledoff) + " " + |Off Time:</td><td>| + textbox$(offtime$,"tb40") + |<br>| a$ = a$ + |</div>| endif html a$ pause 200 a$ = "" if (showtherm = 1) or (showstat = 1) then a$ = a$ + |<div style='display: table; margin-right:auto;margin-left:auto;text-align:center;borderx:1px solid gray;'>| a$ = a$ + |<br><div id='temp' style='font-family: myfont;background:LightGoldenRodYellow ;color:dimgray;font-size:1.8em;text-align:center;border:1px solid gray;| a$ = a$ + |display: table; margin-right:auto;margin-left:auto;border-radius:3em;padding-left:.4em;padding-right:.3em;'>| + temp$ + "˚" + |</div>| a$ = a$ + "<br>" if showstat = 1 then a$ = a$ + button$(" < ", statdown) + " " + textbox$(setpoint,"tb30") + " " + button$(" > ", statup) + "<br>" a$ = a$ + checkbox$(enablestat) + listbox$(statmode$,statlist$,"tb80") + "<br><br>" endif a$ = a$ + |</div>| endif if showcycled = 1 then a$ = a$ + |<div style='display: table; margin-right:auto;margin-left:auto;text-align:center;borderx:1px solid gray;'>| a$ = a$ + |<table align='center'><tr><td>| a$ = a$ + button$("Controlled On ", cycle1on) + string$(9," ") + |</td><td>| + "On delay " + |</td><td>| a$ = a$ + " " + checkbox$(enabledelayon) + |</td><td>| + " " + textbox$(ondelay,"tb40") + |</td><td>| + listbox$(ondelunits$,unitslist$,"tb60") + |</td><td>| a$ = a$ + string$(9," ") + " On duration " + |</td><td>| + checkbox$(enabletimedon) + |</td><td>| + " " + textbox$(onduration,"tb40") + |</td><td>| + listbox$(ondurunits$,unitslist$,"tb60") + |</td></tr><br><tr><td>| a$ = a$ + button$("Controlled Off ", cycle1off) + string$(9," ") + |</td><td>| + "Off delay " + |</td><td>| a$ = a$ + " " + checkbox$(enabledelayoff) + |</td><td>| + " " + textbox$(offdelay,"tb40") + |</td><td>| + listbox$(offdelunits$,unitslist$,"tb60") + |</td><td>| a$ = a$ + string$(9," ") + " Off duration " + |</td><td>| + checkbox$(enabletimedoff) + |</td><td>| + " " + textbox$(offduration,"tb40") + |</td><td>| + listbox$(offdurunits$,unitslist$,"tb60") + |</td></tr></table><br>| a$ = a$ + |</div>| endif if showtools = 1 then a$ = a$ + |<div style='display: table; margin-right:auto;margin-left:auto;text-align:center;borderx:1px solid gray;'>| a$ = a$ + "<br>" + button$("Blink", blink) + " " + textbox$(blinks,"tb40") + string$(9," ") a$ = a$ + button$("Blink IP", blinkip) + string$(9," ") a$ = a$ + button$("Send", sendudp) + string$(9," ") a$ = a$ + button$("Save settings", save) + "<br>" a$ = a$ + |</div>| endif if showswmodes = 1 then a$ = a$ + "<br> gpio0 On/Off flip switch " + checkbox$(buttonmode) + " or momentary toggle button<br>" a$ = a$ + " gpio" + str$(switchpin) + " On/Off flip switch " + checkbox$(switchmode) + " or momentary toggle button<br>" endif a$ = a$ + "<br>ShowSettings:" + checkbox$(showsettings) if showsettings = 1 then a$=a$+", ShowTitle:"+checkbox$(showtitle)+", ShowID:"+checkbox$(showid)+", Buttons:"+checkbox$(showbuttons) a$=a$+", ShowClock:"+checkbox$(showclock)+", ShowScheduled:"+checkbox$(showscheduled) a$=a$+", ShowTherm:"+checkbox$(showtherm)+", ShowStat:"+checkbox$(showstat) a$=a$+", ShowCycled:"+checkbox$(showcycled)+", ShowTools:"+checkbox$(showtools)+", ShowSWmodes:"+checkbox$(showswmodes)+"<br>"+"<br>" endif a$ = a$ + cssid$("tb30", "width:30; text-align:center; color:teal; background:GhostWhite;") a$ = a$ + cssid$("tb40", "width:40; text-align:center; color:teal; background:GhostWhite;") a$ = a$ + cssid$("tb60", "width:60; text-align:center; color:teal; background:GhostWhite;") a$ = a$ + cssid$("tb80", "width:80; text-align:center; color:teal; background:GhostWhite;") a$ = a$ + |</div>| html a$ a$ = "" return settings: if visibility$ = "Hide" then visibility$ = "Show" else visibility$ = "Hide" refresh return changed: ch$ = HtmlEventVar$ if instr(ch$,"show") = 1 then gosub paint if len(word$(ontime$,2,":")) = 1 then ontime$ = replace$(ontime$,":",":0") if len(word$(offtime$,2,":")) = 1 then offtime$ = replace$(offtime$,":",":0") return ticker: if showclock = 1 then jscall |_$('clock').innerHTML = "| + time$ + |"| ' updates the digital clock display if (showtherm = 1) or (enablestat = 1) then newtemp$ = str$(val(tempr$(dallaspin,1)),"%2.1f") if (newtemp$ <> temp$) then temp$ = newtemp$ jscall |_$('temp').innerHTML = "| + temp$ + "˚" + |"| ' updates the temp display endif endif if enablestat = 1 then if val(temp$) < setpoint then 'turn heater on or fan off if (statmode$ = "heater") and (pin(relay1pin) = relay1noff) then if relay1noff = 0 then pin(relay1pin) = 1 else pin(relay1pin) = 0 html cssid$("butled", "background:red;") endif if (statmode$ = "fan") and (pin(relay1pin) <> relay1noff) then pin(relay1pin) = relay1noff html cssid$("butled", "background:green;") endif endif if (val(temp$) > setpoint) then if (statmode$ = "heater") and (pin(relay1pin) <> relay1noff) then pin(relay1pin) = relay1noff html cssid$("butled", "background:green;") endif if (statmode$ = "fan") and (pin(relay1pin) = relay1noff) then pin(relay1pin) = 1 - relay1noff html cssid$("butled", "background:red;") endif endif endif if (enablescheduledon = 1) and (pin(relay1pin) = relay1noff) then if (val(word$(ontime$,1,":")) = val(word$(time$,1,":"))) and (val(word$(ontime$,2,":")) = val(word$(time$,2,":"))) then gosub relay1on endif if (enablescheduledoff = 1) and (pin(relay1pin) <> relay1noff) then if (val(word$(offtime$,1,":")) = val(word$(time$,1,":"))) and (val(word$(offtime$,2,":")) = val(word$(time$,2,":"))) then gosub relay1off endif if ondelaycountdown >= 0 then if pin(led1pin) = 0 then pin(led1pin) = 1 else pin(led1pin) = 0 if ondelaycountdown > 0 then ondelaycountdown = ondelaycountdown -1 else ondelaycountdown = -1 gosub relay1on COMMAND "m=" + ondurunits$ if enabletimedon = 1 then ondurationcountdown = onduration * m endif endif if ondurationcountdown >= 0 then if pin(led1pin) = 0 then pin(led1pin) = 1 else pin(led1pin) = 0 if ondurationcountdown > 0 then ondurationcountdown = ondurationcountdown -1 else ondurationcountdown = -1 gosub relay1off endif endif if offdelaycountdown >= 0 then if pin(led1pin) = 0 then pin(led1pin) = 1 else pin(led1pin) = 0 if offdelaycountdown > 0 then offdelaycountdown = offdelaycountdown -1 else offdelaycountdown = -1 gosub relay1off COMMAND "m=" + offdurunits$ if enabletimedoff = 1 then offdurationcountdown = offduration * m endif endif if offdurationcountdown >= 0 then if pin(led1pin) = 0 then pin(led1pin) = 1 else pin(led1pin) = 0 if offdurationcountdown > 0 then offdurationcountdown = offdurationcountdown -1 else offdurationcountdown = -1 gosub relay1on endif endif return statup: setpoint = setpoint + 1 newtemp$ = "" refresh return statdown: setpoint = setpoint - 1 if setpoint < 0 then setpoint = 0 newtemp$ = "" refresh return udpRX: RXmsg$ = udp.read$ if ucase$(word$(RXmsg$,1)) = "ACK" then gosub ACK 'echoed reply from successfully received message, original msg can be removed from queue else target$ = ucase$(word$(RXmsg$,1)) 'Target may be NodeName or GroupName or "ALL" or localIP address if (target$=localIP$) OR (target$=ucase$(nodename$)) OR (instr(ucase$(groupname$),target$)>0) OR (target$="ALL") then instruction$ = trim$(ucase$(word$(RXmsg$,2))) 'Instruction is second word of message data$ = "": getdata data$,RXmsg$," ",2 'extract any data that follows the instruction if word.find(ucase$(instructionslist$),instruction$) > 0 then if (ucase$(instruction$) <> "ACK") and (instr(ucase$(data$),"ID=") > 0) then udp.reply "ACK " + RXmsg$ 'ACKnowledge the incoming msg endif gosub instruction$ 'branch to action the corresponding instruction subroutine else udp.reply RXmsg$ + " INSTRUCTION NOT RECOGNISED" endif 'word.find endif '(target$=localIP$) endif 'ACK return ACK: msg$ = "": getdata msg$, RXmsg$, " ", 1 pos = word.find(retryq$,msg$,qdelimiter$) if pos > 0 then retryq$ = word.delete$(retryq$,pos,qdelimiter$) return RETRY: if word.count(retryq$, qdelimiter$) > 0 then if retryq$ <> "" then wlog "queue=" + retryq$ msg$ = word$(retryq$,1,qdelimiter$) 'grab first unACKed msg in the queue retryq$ = word.delete$(retryq$,1,qdelimiter$) 'chop msg off front of queue expire$ = "" WordParse expire$, msg$, "ID=", " " 'parse out ID= expire time if msg$ <> "" then 'compare expire time to current unix time if dateunix(date$) + timeunix(time$) > val(expire$) then Send "LOG ERROR: Node " + Nodename$ + " FAILED SEND - " + msg$ + " not ACKnowledged" else retryq$ = retryq$ + msg$ + qdelimiter$ udp.write netip$ + "255", udpport, msg$ wlog "retry " + msg$ endif endif endif return sendudp: sendmsg$ = sendmsg$ + " ID=" + str$(dateunix(date$) + timeunix(time$) + time2live, "%10d", 1) retryq$ = retryq$ + sendmsg$ + qdelimiter$ udp.write netip$ + "255", udpport, sendmsg$ return sub SendQ(sendmsg$) sendmsg$ = sendmsg$ + " ID=" + str$(dateunix(date$) + timeunix(time$) + time2live, "%10d", 1) retryq$ = retryq$ + sendmsg$ + qdelimiter$ udp.write netip$ + "255", udpport, sendmsg$ end sub sub Send(sendmsg$) udp.write netip$ + "255", udpport, sendmsg$ end sub sub GetData(ret$, v$, sep$, pos) 'extracts everything from the msg after the Instruction and puts into data$ (thanks cicciocb) local i, p, q p = 1 for i = 1 to pos p = instr(p + 1, v$, sep$) if p > 0 then p = p + len(sep$) next i if p = 0 then ret$ = "" else q = instr(p+1, v$, sep$) if q = 0 then q = 999 ret$ = mid$(v$, p) end if end sub sub WordParse(ret$, full$, search$, sep$) 'extracts value from option=value (thanks cicciocb) local p, b$ p = instr(full$, search$) if p <> 0 then b$ = mid$(full$, p + len(search$)) ret$ = word$(b$, 1, sep$) else ret$ = "" end if end sub load: ' Loads settings from file ... not yet fully implemented a$ = "" if FILE.EXISTS(filename$) > 0 then a$ = FILE.READ$(filename$) if WORD.GETPARAM$(a$,"nodename") <> "" then nodename$ = WORD.GETPARAM$(a$,"nodename") if WORD.GETPARAM$(a$,"ondelay") <> "" then ondelay = val(WORD.GETPARAM$(a$,"ondelay")) if WORD.GETPARAM$(a$,"onduration") <> "" then onduration = val(WORD.GETPARAM$(a$,"onduration")) if WORD.GETPARAM$(a$,"offdelay") <> "" then offdelay = val(WORD.GETPARAM$(a$,"offdelay")) if WORD.GETPARAM$(a$,"offduration") <> "" then offduration = val(WORD.GETPARAM$(a$,"offduration")) if WORD.GETPARAM$(a$,"udpport") <> "" then udpport = val(WORD.GETPARAM$(a$,"udpport")) endif return save: ' Saves settings to file ... not yet fully implemented a$ = "" if FILE.EXISTS(filename$) > 0 then a$ = FILE.READ$(filename$) WORD.SETPARAM a$, "nodename", nodename$ WORD.SETPARAM a$, "ondelay", str$(ondelay) WORD.SETPARAM a$, "onduration", str$(onduration) WORD.SETPARAM a$, "offdelay", str$(offdelay) WORD.SETPARAM a$, "offduration", str$(offduration) WORD.SETPARAM a$, "udpport", str$(udpport) FILE.SAVE filename$, a$ return blink: if data$ <> "" then blinks = val(data$) ledstate = pin(led1pin) pin(led1pin) = led1off pause 200 for count = 1 to blinks if led1off = 1 then pin(led1pin) = 0 else pin(led1pin) = 1 pause 800 pin(led1pin) = led1off pause 200 next count pause 2000 pin(led1pin) = ledstate 'Restore LED state to its previous state return blinkip: ledstate = pin(led1pin) blinkon = 150 blinkoff = 300 blinkpause = 1000 blinkgap = 1400 pin(led1pin) = led1off pause blinkpause for pos = 1 to len(localIP$) digitchr$ = mid$(localIP$,pos,1) if digitchr$ = "." then pause blinkgap else if digitchr$ = "0" then digit = 10 else digit = val(digitchr$) for count = 1 to digit if led1off = 0 then pin(led1pin) = 1 else pin(led1pin) = 0 pause blinkon if led1off = 0 then pin(led1pin) = 0 else pin(led1pin) = 1 pause blinkoff next count pause blinkpause end if next pos pause blinkgap pin(led1pin) = ledstate return REPLY: udp.reply "Reply from " + Nodename$ return REPORT: udp.reply "Report from " + Nodename$ + " " + instructionslist$ return pressed: interrupt buttonpin, off pause debounce if pin(buttonpin) = 0 then start = millis else stop = millis if buttonmode = 1 then if pin(buttonpin) = 0 and (pin(relay1pin) = relay1noff) then gosub relay1on if pin(buttonpin) = 1 and (pin(relay1pin) <> relay1noff) then gosub relay1off else if stop > start then if stop - start < longpress then gosub toggle1 else gosub blinkip endif endif interrupt buttonpin, pressed return switched: interrupt switchpin, off pause debounce if pin(switchpin) <> switchoff then if switchmode = 1 then gosub relay1on else gosub toggle1 else if switchmode = 1 then gosub relay1off endif interrupt switchpin, switched return relay1on: if pin(relay1pin) = relay1noff then if relay1noff = 0 then pin(relay1pin) = 1 else pin(relay1pin) = 0 endif indicator = 0 pin(led1pin) = 1 - led1off html cssid$("butled", "background:red;") ondelaycountdown = -1 offdelaycountdown = -1 ondurationcountdown = -1 offdurationcountdown = -1 return relay1off: if pin(relay1pin) <> relay1noff then pin(relay1pin) = relay1noff indicator = 1 pin(led1pin) = led1off html cssid$("butled", "background:green;") ondelaycountdown = -1 offdelaycountdown = -1 ondurationcountdown = -1 offdurationcountdown = -1 return cycle1on: COMMAND "m=" + ondelunits$ if enabledelayon > 0 then ondelaycountdown = ondelay * m else ondelaycountdown = 0 return cycle1off: COMMAND "m=" + offdelunits$ if enabledelayoff > 0 then offdelaycountdown = offdelay * m else offdelaycountdown = 0 return toggle1: if pin(relay1pin) = relay1noff gosub relay1on else gosub relay1off enablescheduledon = 0 enablescheduledoff = 0 enablestat = 0 enabledelayon = 0 enabledelayoff = 0 enabletimedon = 0 enabletimedoff = 0 ondelaycountdown = -1 offdelaycountdown = -1 ondurationcountdown = -1 offdurationcountdown = -1 return END '-------------------- End --------------------- |
