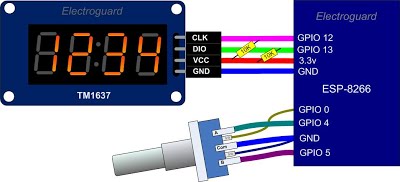

 Security is maximised by the exact number of correct digits being required. User combination codes may have any amount of different numbers, so can be easy to remember, or long and complicated... or have both. More than one user combination code can be set if wished, so different user pass codes might allow access to different features or security levels. Numbers can range between whatever rmin and rmax limits are set, ie: the rotary control might count from 0 to 9 to 0 again, or 1010 to 5000. The rotary control sequences from rmin to rmax then jumps back to rmin. Dial each number in the correct order then press the button to register it. Unlocks after registering the last number of a correctly entered sequence.  The simple circuit uses only a rotary encoder and a TM1637 4-digit display with a pair of 10K pullups for its CLK and DIO connections. You may wish to optionally use an output for a relay or door-release.
Basic:
' Rotary Combination Lock
rotaryA = 4 'Rotary encoder pulse A output pin rotaryB = 5 'Rotary encoder pulse B output pin buttonpin = 0 'Rotary encoder selector button pin combination1$ = "1 2 3 4" 'User 1 combination, change to suit combination2$ = "0 1 9 99" 'User 2 combination, change to suit or make blank "" to disable combination3$ = "" 'User 3 combination, change to suit or make blank "" to disable TM1637.SETUP 12, 13 'Enter your appropriate SDA and SCL pins TMbrightness = 4 '7=bright, 1=dim, 0=off rmin = 0 'Range minimum, lower values will wrap around to rmax rmax = 99 'Range maximum, higher values will wrap around to rmin d = rmin 'Initial number to start from when rotary controller is first moved 'debounce = 20 debounce = 120 lasttime = 0 thistime = 0 start = 0 stop = 0 digits$ = "" sequence$ = "" TM1637.PRINT digits$, 4 pin.mode buttonpin, input, pullup pin.mode rotaryA, input, pullup pin.mode rotaryB, input, pullup interrupt rotaryA, changed interrupt buttonpin, button wait changed: thistime = millis if thistime - lasttime > debounce then if pin(rotaryA) = 0 then if pin(rotaryB) = 0 then d = d - 1 if d < rmin then d = rmax else d = d + 1 if d > (rmax - 1) then d = rmin endif TM1637.PRINT str$(d), 4 wlog str$(d) lasttime = thistime endif endif return button: if pin(buttonpin) = 0 then start = millis else stop = millis if stop > (start + debounce) then if stop - start < 2000 then 'getdigit digits$ = digits$ + " " + str$(d) wlog digits$ if combination1$ >"" and trim$(digits$) = combination1$ then TM1637.PRINT " 1", 4 wlog "unlocked User 1" d = 0 digits$ = "" sequence$ = "" pause 1000 endif if combination2$ >"" and trim$(digits$) = combination2$ then TM1637.PRINT " 2", 4 wlog "unlocked User 2" d = 0 digits$ = "" sequence$ = "" pause 1000 endif if combination3$ >"" and trim$(digits$) = combination3$ then TM1637.PRINT " 3", 4 wlog "unlocked User 3" d = 0 digits$ = "" sequence$ = "" pause 1000 endif else 'reset d = 0 TM1637.PRINT "", 4 digits$ = "" sequence$ = "" wlog "reset" endif endif return '----------- End ---------- If electronic vaults had no manual backup option then a lot of valuables would be locked away for eternity... so think about your own backup plan. A simple way to supply external backup power to a locked-away flat battery is to provide eg: a couple of external screw heads as battery terminals.Electric door releases can typically be used with a standard key
operated lock, but you might want to prevent key access while it is powered on
ok. |
