  Adds CycleON and CycleOFF buttons to the previous Simple Relay

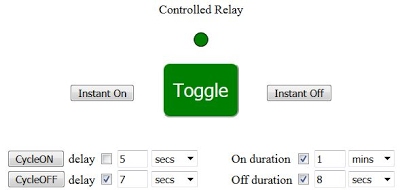

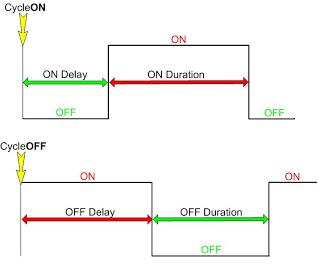

Provides optional Delay and Duration for both the On and Off operations. The timing diagram on the right shows how the On and Off Delays and Durations work. Delays and Durations can be enabled/disabled using the appropriate checkboxs. A disabled Delay will operate immediately irrespective of the set value. A disabled Duration will not return to it's previous state after being triggered, irrespective of the set value. Using the values shown in the screenshot above as examples... CycleON button would immediately switch On (eg:) a lamp (because delay is unchecked), then it would switch back Off after the elapsed 1 min duration.
CycleOFF button would delay 7 seconds (cos delay is ticked) before switching Off (to eg: reboot a router), then switch back On again after 8 sec Off duration.
The required Delays and Durations are obtained from a 1sec clock using 'virtual timer' countdown counters which are decremented every
second until they reach 0 to trigger the events. Secs are * 60 for mins, * another 60 for hours, and then * 24 for days ... these same multiplier values are used by the script.
If using a Sonoff S20, rather than echo the blue led relay
status, the onboard green LED blinks on/off while any virtual timers are still pending to show it will change.
Basic:
title$ = "Controlled Relay"
led = 1 'Onscreen LED$ variable, 0=on 1=off, ledpin = 13 'Sonoff green LED (active low) ledoff = 1 'Sonoff LED Off state pin.mode ledpin, output pin(ledpin) = ledoff relaypin = 12 'Sonoff relay (active high) relayoff = 0 'Sonoff Relay Off state pin.mode relaypin, output pin(relaypin) = 0 buttonpin = 0 'Sonoff button (active low) pin.mode buttonpin, input, pullup interrupt buttonpin, pressed ledstat$ = "green" 'Toggle button colour unitslist$ = "secs, mins, hours, days" 'Displayed time multiplier secs=1: mins=secs*60: hours=mins*60: days=hours*24 interval = 1 delayon = 0 ondelay = 5 ondelaycountdown = -1 ondelunits$ = "secs" timedon = 1 onduration = 1 ondurationcountdown = -1 ondurunits$ = "mins" delayoff = 1 offdelay = 7 offdelaycountdown = -1 offdelunits$ = "secs" timedoff = 1 offduration = 8 offdurationcountdown = -1 offdurunits$ = "secs" timer0 1000, ticker gosub paint onhtmlreload paint wait ticker: if ondelaycountdown >= 0 then pin(ledpin) = 1 - pin(ledpin) if ondelaycountdown > 0 then ondelaycountdown = ondelaycountdown -1 else ondelaycountdown = -1 gosub relayon COMMAND "interval=" + ondurunits$ if timedon = 1 then ondurationcountdown = onduration * interval endif endif if ondurationcountdown >= 0 then if pin(ledpin) = 0 then pin(ledpin) = 1 else pin(ledpin) = 0 if ondurationcountdown > 0 then ondurationcountdown = ondurationcountdown -1 else ondurationcountdown = -1 gosub relayoff endif endif if offdelaycountdown >= 0 then if pin(ledpin) = 0 then pin(ledpin) = 1 else pin(ledpin) = 0 if offdelaycountdown > 0 then offdelaycountdown = offdelaycountdown -1 else offdelaycountdown = -1 gosub relayoff COMMAND "interval=" + offdurunits$ if timedoff = 1 then offdurationcountdown = offduration * interval endif endif if offdurationcountdown >= 0 then if pin(ledpin) = 0 then pin(ledpin) = 1 else pin(ledpin) = 0 if offdurationcountdown > 0 then offdurationcountdown = offdurationcountdown -1 else offdurationcountdown = -1 gosub relayon endif endif 'refresh return paint: cls autorefresh 1000 a$ = a$ + cssid$("tb40", "width:40;") a$ = a$ + cssid$("tb60", "width:60;") a$ = a$ + cssid$("butled", "height:3em; font-size:1.5em; border-radius:.4em; padding:.5em; color:white; background:" + ledstat$ + ";") a$ = a$ + |<br><div style='display: table; margin-right:auto;margin-left:auto;text-align:center;'>| a$ = a$ + title$ + "<br><br>" a$ = a$ + led$(led) a$ = a$ + "<br><br>" a$ = a$ + button$("Instant On",relayon) + string$(9," ") + button$("Toggle", toggle, "butled") + string$(9," ") + button$("Instant Off",relayoff) a$ = a$ + "<br>" a$ = a$ + |<table align='center'><tr><td>| a$ = a$ + button$("CycleON ", cycleon) + |</td><td>| + " delay " + |</td><td>| a$ = a$ + " " + checkbox$(delayon) + |</td><td>| a$ = a$ + " " + textbox$(ondelay,"tb40") + |</td><td>| a$ = a$ + listbox$(ondelunits$,unitslist$,"tb60") + |</td><td>| a$ = a$ + string$(9," ")+ " On duration " + |</td><td>| a$ = a$ + checkbox$(timedon) + |</td><td>| a$ = a$ + " " + textbox$(onduration,"tb40") + |</td><td>| + listbox$(ondurunits$,unitslist$,"tb60") + |</td></tr><br><br><tr><td>| a$ = a$ + button$("CycleOFF", cycleoff) + |</td><td>| + " delay " + |</td><td>| a$ = a$ + " " + checkbox$(delayoff) + |</td><td>| + " " + textbox$(offdelay,"tb40") + |</td><td>| + listbox$(offdelunits$,unitslist$,"tb60") + |</td><td>| a$ = a$ + string$(9," ")+ " Off duration " + |</td><td>| + checkbox$(timedoff) + |</td><td>| + " " + textbox$(offduration,"tb40") a$ = a$ + |</td><td>| + listbox$(offdurunits$,unitslist$,"tb60") + |</td></tr></table><br>| a$ = a$ + |</div>| html a$ a$ = "" return pressed: if pin(buttonpin) = 0 then gosub toggle return relayon: if pin(relaypin) = relayoff then if relayoff = 0 then pin(relaypin) = 1 else pin(relaypin) = 0 endif pin(ledpin) = 1 - ledoff html cssid$("butled", "background:red;") led = 0 refresh return relayoff: refresh if pin(relaypin) <> relayoff then pin(relaypin) = relayoff pin(ledpin) = ledoff html cssid$("butled", "background:green;") led = 1 refresh return toggle: if pin(relaypin) = relayoff then gosub relayon else gosub relayoff return cycleon: COMMAND "interval=" + ondelunits$ if delayon > 0 then ondelaycountdown = ondelay * interval else ondelaycountdown = 0 return cycleoff: COMMAND "interval=" + offdelunits$ if delayoff > 0 then offdelaycountdown = offdelay * interval else offdelaycountdown = 0 return '-------------------- End --------------------- Note: This project was removed last year because the listbox$ components did not display correctly - but the old link remained from the previous project, and many people requested access to it, so the project has been made available again now that the listboxes work with the latest Annex 1.37 beta 4 firmware release.
|
